Description

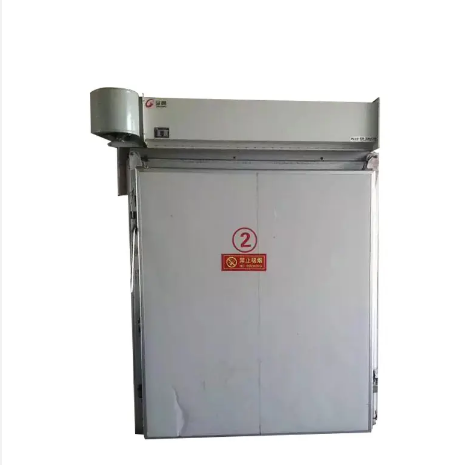

Cold Room cold storage cooling food Centrifugal fan air curtain
· Applied Height: 4.0 m

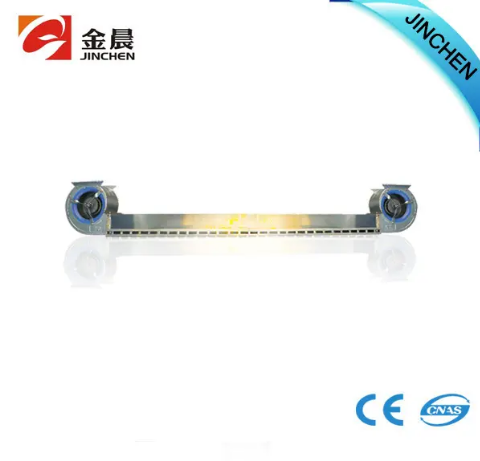

· JCFM-900-1400 JINCHEN Air Curtain for Cold Storage consists of anti-frost centrifugal motor(s), high speed fans and patent cover design.
· Special centrifugal motors work to generate large wind volume. The Cold Room/Refrigeration Air Curtain with single-motor or double-motor design prevents hot air outside and runs in stability.
· With the guarantee of the patented lateral-blown design, JINCHEN manufactures the particular products to higher insulating height for cold storages, cold rooms, freezer rooms, refrigeratory, etc.
| Model | Length of air outlet(mm) | Motor voltage (V) |
Motor Power(W) | Air Volume(m³/h) | Wind Speed(m/s) | Noise(dB) | Motor Fan length(mm) |
| JCFM900-1400 | 900-1400 | 380 | 550 | 1800-2800 | 15-17 | 66 | 380 |
| Model | Length of air outlet(mm) | Motor voltage (V) |
Motor Power(W) | Air Volume(m³/h) | Wind Speed(m/s) | Noise(dB) | Motor Fan length(mm) |
| JCFM1500-2000A | 1500-2000 | 380 | 650 | 2000-3000 | 16-18 | 67 | 380 |
| Model | Length of air outlet(mm) | Motor voltage (V) |
Motor Power(W) | Air Volume(m³/h) | Wind Speed(m/s) | Noise(dB) | Motor Fan length(mm) |
| JCFM1500-2000B | 1500-2000 | 380 | 750 | 2500-3000 | 17-19 | 68 | 380 |
| Model | Length of air outlet(mm) | Motor voltage (V) |
Motor Power(W) | Air Volume(m³/h) | Wind Speed(m/s) | Noise(dB) | Motor Fan length(mm) |
| JCFM2100-2500A | 2100-2500 | 380 | 650*2 | 4000-6000 | 19-21 | 70 | 380*2 |
| Model | Length of air outlet(mm) | Motor voltage (V) |
Motor Power(W) | Air Volume(m³/h) | Wind Speed(m/s) | Noise(dB) | Motor Fan length(mm) |
| JCFM2100-2500B | 2100-2500 | 380 | 750*2 | 5000-6000 | 19-21 | 71 | 380*2 |
